import os
import numpy as np
import numba as nb
import pandas as pd
from cv2 import cv2
import swtloc as swt
from platform import python_version
from swtloc import SWTLocalizer
from swtloc.configs import (IMAGE_ORIGINAL,
IMAGE_GRAYSCALE,
IMAGE_EDGED,
IMAGE_SWT_TRANSFORMED,
IMAGE_CONNECTED_COMPONENTS_1C,
IMAGE_CONNECTED_COMPONENTS_3C,
IMAGE_CONNECTED_COMPONENTS_3C_WITH_PRUNED_ELEMENTS,
IMAGE_CONNECTED_COMPONENTS_PRUNED_1C,
IMAGE_CONNECTED_COMPONENTS_PRUNED_3C,
IMAGE_PRUNED_3C_LETTER_LOCALIZATIONS,
IMAGE_ORIGINAL_LETTER_LOCALIZATIONS,
IMAGE_ORIGINAL_MASKED_LETTER_LOCALIZATIONS,
IMAGE_PRUNED_3C_WORD_LOCALIZATIONS,
IMAGE_ORIGINAL_WORD_LOCALIZATIONS,
IMAGE_ORIGINAL_MASKED_WORD_LOCALIZATIONS,
IMAGE_INDIVIDUAL_LETTER_LOCALIZATION,
IMAGE_ORIGINAL_INDIVIDUAL_LETTER_LOCALIZATION,
IMAGE_INDIVIDUAL_WORD_LOCALIZATION,
IMAGE_ORIGINAL_INDIVIDUAL_WORD_LOCALIZATION)
from swtloc.utils import image_1C_to_3C
from swtloc.utils import show_N_images
from swtloc.configs import get_code_descriptions
from swtloc.configs import CODE_NAME_VAR_MAPPINGS
rawimage_path = 'images/'
img_paths = []
res_path = []
img_names = []
img_text_modes = ['db_lf', 'lb_df', 'db_lf', 'lb_df', 'db_lf', 'db_lf']
for each_img in [k for k in os.listdir(rawimage_path) if 'test' in k]:
_ifolder_path = rawimage_path+each_img
_iname = [k for k in os.listdir(_ifolder_path) if '.' in k][0]
_img_path = _ifolder_path+'/'+_iname
img_paths.append(_img_path)
img_names.append(_iname)
res_path.append(_ifolder_path+'/usage_results/')
SWTLocalizer Class
SWTLocalizer class acts as an entry point for performing transformations to the images. It can accept
Single Image Path
Multiple Image Paths
Single Pre-Loaded Image
Multiple Pre-Loaded Images
Once the SWTLocalizer object is instantiated, the attribute swtimages will be populated with all the SWTImage objects corresponding to each input image.
Instantiating SWTLocalizer with Mixed Input will raise an error
swtl = SWTLocalizer(images=[img_paths[0]]+[cv2.imread(img_paths[1])])
print(swtl.swtimages)
---------------------------------------------------------------------------
SWTLocalizerValueError Traceback (most recent call last)
Input In [5], in <module>
----> 1 swtl = SWTLocalizer(images=[img_paths[0]]+[cv2.imread(img_paths[1])])
2 print(swtl.swtimages)
File D:\Personal Stuff\swtloc-project\venvs\py39VenvDev\lib\site-packages\swtloc\swtlocalizer.py:173, in SWTLocalizer.__init__(self, multiprocessing, images, image_paths)
170 self.swtimages: List[SWTImage] = []
172 # Sanity Checks
--> 173 res_pack = self._sanityChecks(images=images, image_paths=image_paths)
174 transform_inputs, transform_input_flags, transform_input_image_names = res_pack
176 # Instantiate each transform_input as SWTImage
File D:\Personal Stuff\swtloc-project\venvs\py39VenvDev\lib\site-packages\swtloc\swtlocalizer.py:254, in SWTLocalizer._sanityChecks(images, image_paths)
251 for each_image in images:
252 # Check if all the elements in the list are images
253 if not isinstance(each_image, np.ndarray):
--> 254 raise SWTLocalizerValueError(
255 "If a list is provided to `images`, each element should be an np.ndarray")
256 # Check if its whether 3d or 1d image
257 if not (len(each_image.shape) in [3, 2]):
SWTLocalizerValueError: If a list is provided to `images`, each element should be an np.ndarray
Instantiating SWTLocalizer with Single Pre-Loaded Image
single_image = cv2.imread(img_paths[0])
swtl = SWTLocalizer(images=single_image)
print(swtl.swtimages)
[SWTImage-SWTImage_982112]
Instantiating SWTLocalizer with Multiple Pre-Loaded Images
multiple_images = [cv2.imread(each_path) for each_path in img_paths]
swtl = SWTLocalizer(images=multiple_images)
print(swtl.swtimages)
[SWTImage-SWTImage_982112, SWTImage-SWTImage_571388, SWTImage-SWTImage_866821, SWTImage-SWTImage_182401, SWTImage-SWTImage_241787, SWTImage-SWTImage_631871]
Instantiating SWTLocalizer with Single Image Path
swtl = SWTLocalizer(image_paths=img_paths[0])
print(swtl.swtimages)
[SWTImage-test_img1]
Instantiating SWTLocalizer with Multiple Image Paths
swtl = SWTLocalizer(image_paths=img_paths)
print(swtl.swtimages)
[SWTImage-test_img1, SWTImage-test_img2, SWTImage-test_img3, SWTImage-test_img4, SWTImage-test_img5, SWTImage-test_img6]
Once the swtimages attribute of the SWTLocalizer class has been populated with SWTImage object, to perform operations like transforming, pruning, localization etc, grab any of the prepared SWTImage object and access its functions for performing the said operations
swtImgObj = swtl.swtimages[0]
swtImgObj
SWTImage-test_img1
SWT Transformation
This section is devoted to explaining the parameters which are available in the SWTImage.transformImage function
text_mode
engine
gaussian_blurr
gaussian_blurr_kernel
edge_function
auto_canny_sigma
minimum_stroke_width
maximum_stroke_width

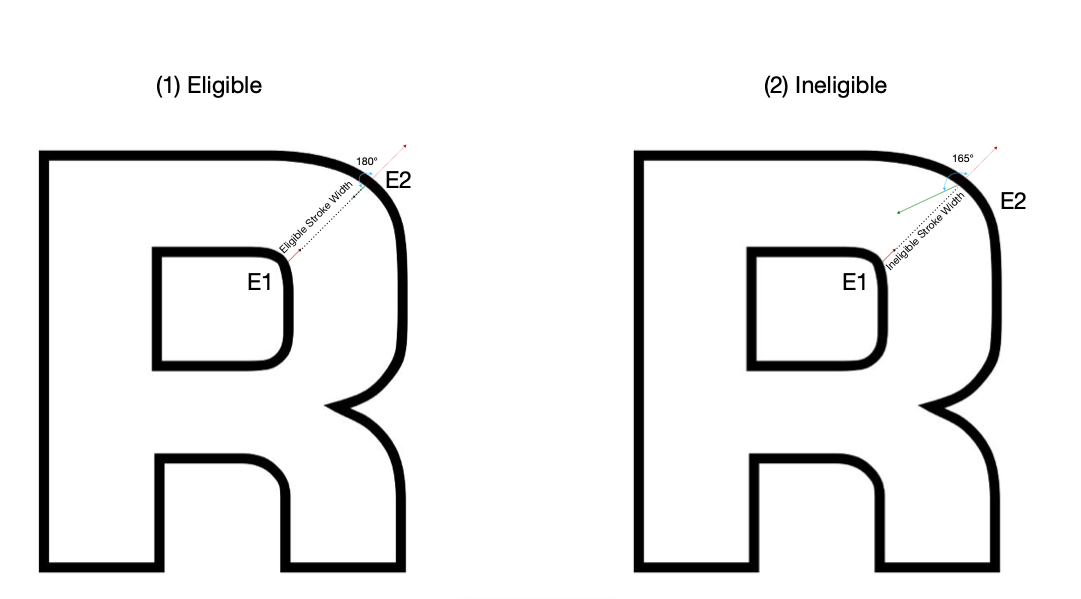

check_angle_deviation

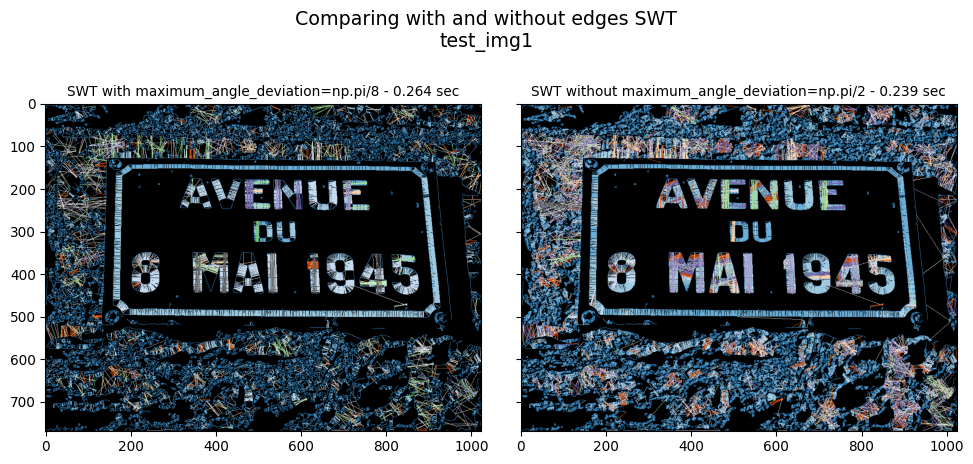

maximum_angle_deviation
include_edges_in_swt
display
Image Codes which become available after running of SWTImage.transfromImage function
Image-Code |
Description |
|---|---|
IMAGE_ORIGINAL |
Original Image |
IMAGE_GRAYSCALE |
Gray-Scaled Image |
IMAGE_EDGED |
Edge Image |
IMAGE_SWT_TRANSFORMED |
SWT Transformed Image |

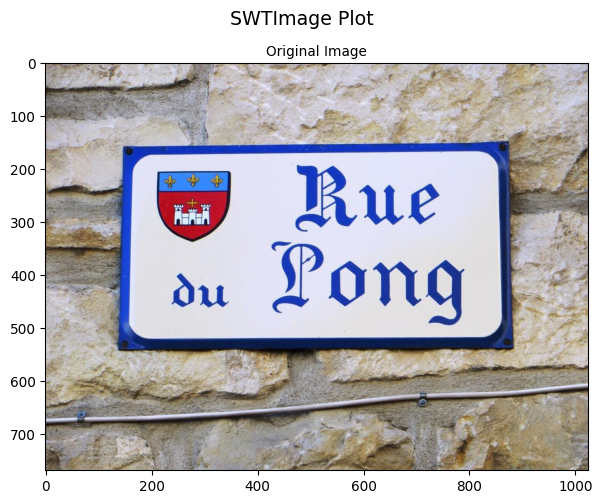

Our Muse (🐁) for this Section
swtImgObj0 = swtl.swtimages[0]
swtImgObj0.showImage()
SWTImage.transform.text_mode
Text Mode Parameter [default = ‘lb_df’]
This is image specific, but an extremely important parameter that takes one of the two value :-
db_lf :> Dark Background Light Foreground i.e Light color text on Dark color background
lb_df :> Light Background Dark Foreground i.e Dark color text on Light color background
This parameters affect how the gradient vectors (the direction) are calulated, since gradient vectors of db_lf are in $-ve$ direction to that of lb_df gradient vectors

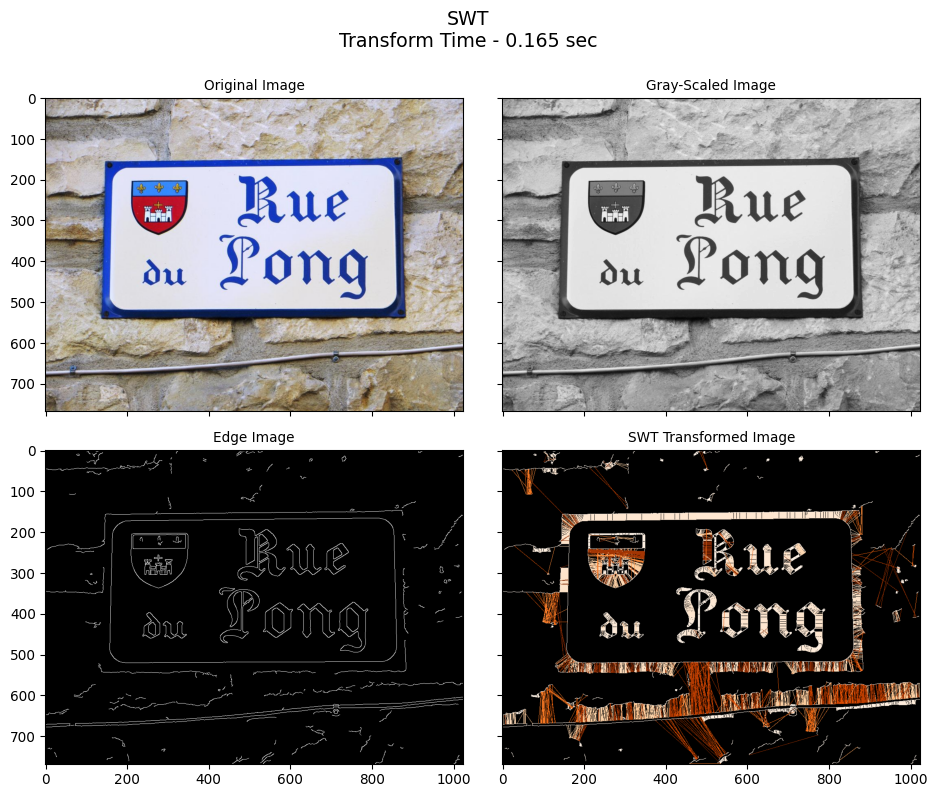

For the image below, the text_mode parameter must be “db_lf”
swt_mat = swtImgObj0.transformImage(text_mode='db_lf')
If we were to use text_mode = ‘lb_df’ (default value) in the above image, the strokes would have been made in the direction opposite to what we would want :
swt_mat1 = swtImgObj0.transformImage(text_mode='db_lf', display=False)
swt_mat2 = swtImgObj0.transformImage(text_mode='lb_df', display=False)
show_N_images([image_1C_to_3C(swt_mat1),
image_1C_to_3C(swt_mat2)],
individual_titles=['db_lf', 'lb_df'],
plot_title='Comparing text mode\n',
sup_title=swtImgObj0.image_name)

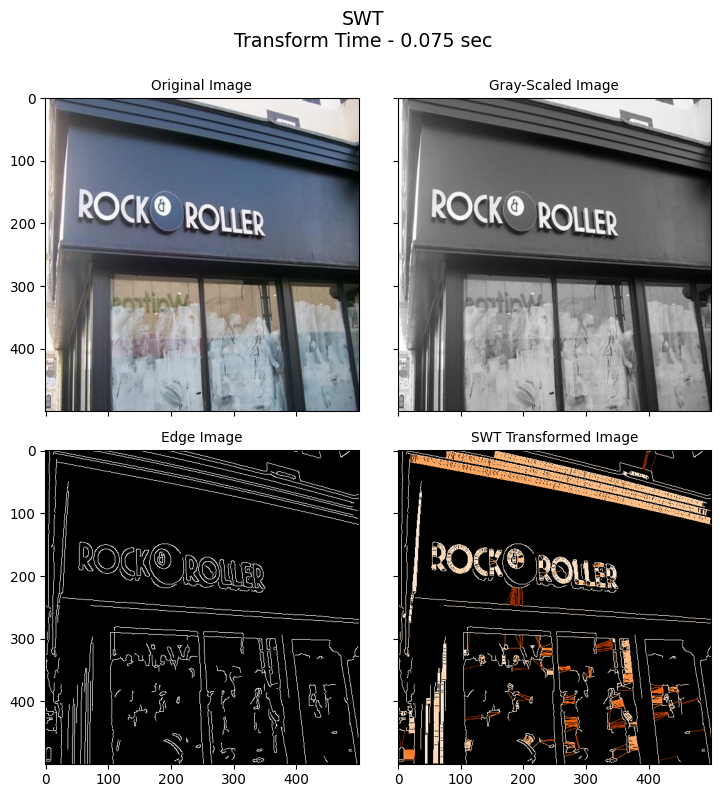

For the image below, the text_mode parameter must be “lb_df”
swtImgObj1 = swtl.swtimages[1]
swt_mat = swtImgObj1.transformImage(text_mode='lb_df')
swtImgObj1._resetSWTTransformParams()
SWTImage.transform.engine
Engine Parameter [default=’numba’]
This parameter was added from v2.0.0 onwards, there are two available engines for stroke width transformation
engine=”numba” : Numba No-Python, jit compilation to compine thefindStrokesfunction (in core.py) to machine code, hence enhancing the speed of transformationengine=”python” : Vanilla Python
%%timeit -n 10 -r 10
# Speed Benchmarking using numba engine
_=swtImgObj0.transformImage(text_mode='db_lf', display=False)
232 ms ± 11.6 ms per loop (mean ± std. dev. of 10 runs, 10 loops each)
%%timeit -n 10 -r 10
# Speed Benchmarking using python engine
_=swtImgObj0.transformImage(text_mode='db_lf', engine='python', display=False)
5.33 s ± 159 ms per loop (mean ± std. dev. of 10 runs, 10 loops each)
Clearly, there is nearly 50x speed enhancement while using engine=”numba”, its also the default parameter. Also, while testing the same with other test images, similar speed improvements were found. You can find the Speed Benchmarking for other test images in README.md
SWTImage.transform.gaussian_blurr
Gaussian Blurr Parameter [default = True]
Whether to apply gaussian blurr or not.
swt_mat1 = swtImgObj0.transformImage(text_mode='db_lf', gaussian_blurr=True, display=False)
gs_time = swtImgObj0.transform_time
swt_mat2 = swtImgObj0.transformImage(text_mode='db_lf', gaussian_blurr=False, display=False)
nogs_time = swtImgObj0.transform_time
show_N_images([image_1C_to_3C(swt_mat1),
image_1C_to_3C(swt_mat2)],
individual_titles=[f'With Gaussian Blurr - {gs_time}', f'Without Gaussian Blurr - {nogs_time}'],
plot_title='Comparing with & w/o Gaussian Blurr\n',
sup_title=swtImgObj0.image_name)

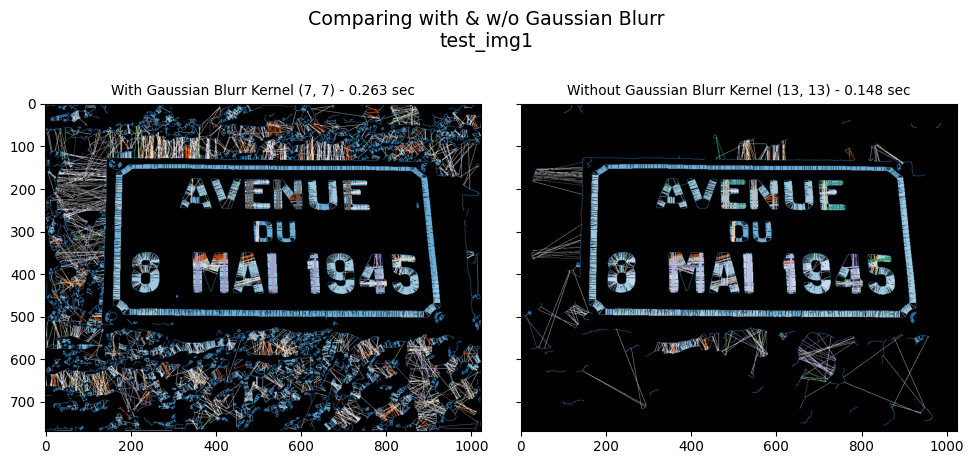

SWTImage.transform.gaussian_blurr_kernel
Gaussian Blurr Kernel Parameter [default = (5, 5)]
Kernel to use for gaussian blurring when gaussian_blurr parameter is set to True
swt_mat1 = swtImgObj0.transformImage(text_mode='db_lf', gaussian_blurr=True,
gaussian_blurr_kernel=(7, 7), display=False)
k1_time = swtImgObj0.transform_time
swt_mat2 = swtImgObj0.transformImage(text_mode='db_lf', gaussian_blurr=True,
gaussian_blurr_kernel=(13, 13), display=False)
k2_time = swtImgObj0.transform_time
show_N_images([image_1C_to_3C(swt_mat1),
image_1C_to_3C(swt_mat2)],
individual_titles=[f'With Gaussian Blurr Kernel (7, 7) - {k1_time}',
f'Without Gaussian Blurr Kernel (13, 13) - {k2_time}'],
plot_title='Comparing with & w/o Gaussian Blurr\n',
sup_title=swtImgObj0.image_name)
SWTImage.transform.edge_function
Image Edging [default = ‘ac’]
Finding the Edge of the image is a tricky part, this is pertaining to the fact that in most of the cases the images we deal with are of not that standard that applying just a opencv Canny operator would result in the desired Edge Image.
Sometimes (In most cases) there is some custom processing required before edging, for that reason alone this function accepts one of the following two arguments :-
‘ac’ :> Auto-Canny function, an in-built function which will generate the Canny Image from the original image, internally calculating the threshold parameters, although, to tune it even further ‘ac_sigma’ parameter is provided which can take any value between 0.0 <–> 1.0 .
A custom function : This function should have its signature as mentioned below :
def custom_edge_func(gauss_image):
Your Function Logic... edge_image = ... return edge_image
Comparing Auto Canny Sigma Values
def custom_edge_func(gray_image):
gauss_image = cv2.GaussianBlur(gray_image, (5,5), 1)
laplacian_conv = cv2.Laplacian(gauss_image, -1, (5,5))
canny_edge = cv2.Canny(laplacian_conv, 20, 140)
return canny_edge
swt_mat1 = swtImgObj1.transformImage(edge_function=custom_edge_func, display=False)
cef_time = swtImgObj1.transform_time
swt_mat2 = swtImgObj1.transformImage(edge_function='ac', display=False)
ac_time = swtImgObj1.transform_time
show_N_images([image_1C_to_3C(swt_mat1),
image_1C_to_3C(swt_mat2)],
individual_titles=[f'With custom edge_function - {cef_time}',
f'With auto canny edge function - {ac_time}'],

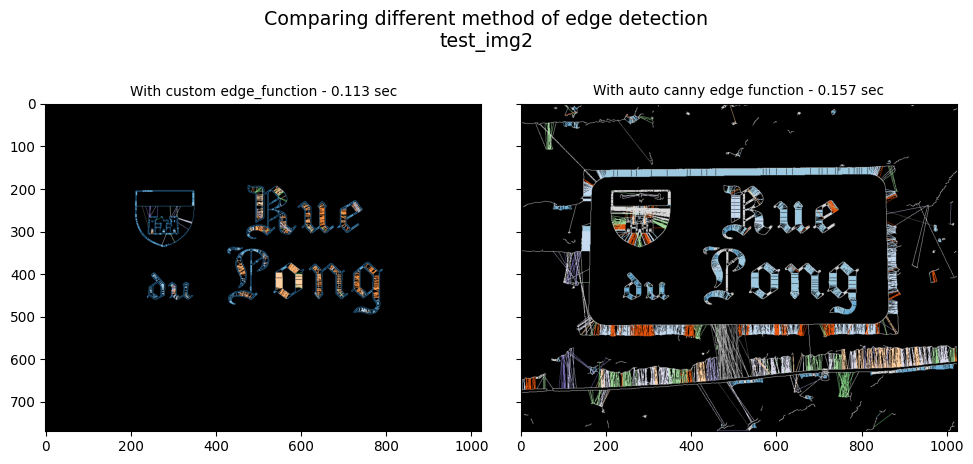

plot_title='Comparing different method of edge detection\n',
sup_title=swtImgObj1.image_name)
swtImgObj1._resetSWTTransformParams()
SWTImage.transform.auto_canny_sigma
Sigma Values of Auto Canny Edge Function [default = 0.33]
Sigma value of the Auto Canny Edge function, only applicable when edge_function = “ac”
swt_mat1 = swtImgObj0.transformImage(text_mode='db_lf', auto_canny_sigma=0.1, display=False)
acd_time = swtImgObj0.transform_time
swt_mat2 = swtImgObj0.transformImage(text_mode='db_lf', auto_canny_sigma=1.0, display=False)
ac1_time = swtImgObj0.transform_time
show_N_images([image_1C_to_3C(swt_mat1),
image_1C_to_3C(swt_mat2)],
individual_titles=[f'With edge_function=ac & sigma=0.10 - {acd_time}',
f'With edge_function=ac & sigma=1.00 - {ac1_time}'],
plot_title='Comparing different values of sigma for auto-canny\n',
sup_title=swtImgObj.image_name)

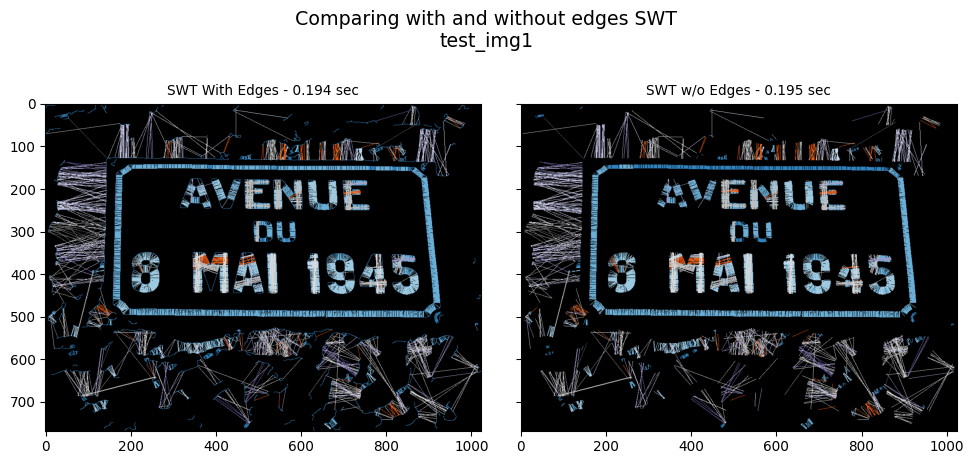

SWTImage.transform.include_edges_in_swt
Parameter to include those edges from which no stroke was finalised [default = True]
Not all edges end up generating an eligible strokes from them, this parameter gives an option whether to include those edges in or not. Edges hold the value=1 in the swt image
swt_mat1 = swtImgObj0.transformImage(text_mode='db_lf', include_edges_in_swt=True,
gaussian_blurr_kernel = (11, 11), display=False)
we_time = swtImgObj0.transform_time
swt_mat2 = swtImgObj0.transformImage(text_mode='db_lf', include_edges_in_swt=False,
gaussian_blurr_kernel = (11, 11), display=False)
woe_time = swtImgObj0.transform_time
show_N_images([image_1C_to_3C(swt_mat1),
image_1C_to_3C(swt_mat2)],
individual_titles=[f'SWT With Edges - {we_time}',
f'SWT w/o Edges - {woe_time}'],
plot_title='Comparing with and without edges SWT\n',
sup_title=swtImgObj0.image_name)
SWTImage.transform.minimum_stroke_width
Minimum Permissible Stroke Length Parameter [default = 3]
While looking for a eligibile stroke emanating from any edge co-ordinate in the image, this parameter governs the minimum stroke length below which the stroke will be disqualified.
swt_mat1 = swtImgObj0.transformImage(text_mode='db_lf', minimum_stroke_width=10,
include_edges_in_swt=False, display=False)
acd_time = swtImgObj0.transform_time
swt_mat2 = swtImgObj0.transformImage(text_mode='db_lf', minimum_stroke_width=20,
include_edges_in_swt=False, display=False)
ac1_time = swtImgObj0.transform_time
np.unique(swt_mat1)
array([ 0, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21,
22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34,
35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47,
48, 49, 50, 51, 52, 53, 54, 55, 56, 57, 58, 59, 60,
61, 62, 63, 64, 65, 66, 67, 68, 69, 70, 71, 72, 73,
74, 75, 76, 77, 78, 79, 80, 81, 82, 83, 84, 85, 86,
89, 91, 92, 93, 94, 95, 98, 100, 101, 102, 104, 106, 107,
109, 110, 112, 113, 114, 115, 116, 118, 153, 175, 185])
np.unique(swt_mat2)
array([ 0, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31,
32, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44,
45, 46, 47, 48, 49, 50, 51, 52, 53, 54, 55, 56, 57,
58, 59, 60, 61, 62, 63, 64, 65, 66, 67, 68, 69, 70,
71, 72, 73, 74, 75, 76, 77, 78, 79, 80, 81, 82, 83,
84, 85, 86, 89, 91, 92, 93, 94, 95, 98, 100, 101, 102,
104, 106, 107, 109, 110, 112, 113, 114, 115, 116, 118, 153, 175,
185])

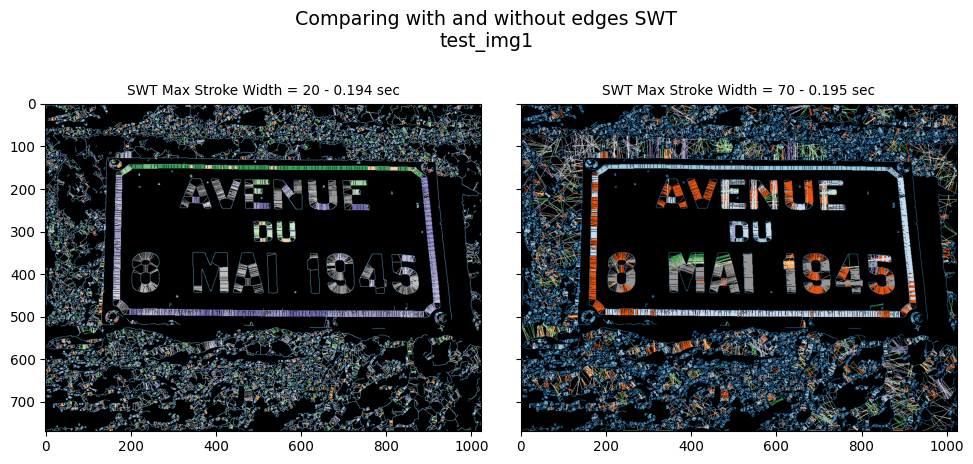

SWTImage.transform.maximum_stroke_width
Maximum Permissible Stroke Length Parameter [default = 200]
While looking for a eligibile stroke emanating from any edge co-ordinate in the image, this parameter governs the maximum stroke length beyond which the stroke will be disqualified.
swt_mat1 = swtImgObj0.transformImage(text_mode='db_lf', maximum_stroke_width=20, display=False)
acd_time = swtImgObj0.transform_time
swt_mat2 = swtImgObj0.transformImage(text_mode='db_lf', maximum_stroke_width=70, display=False)
ac1_time = swtImgObj0.transform_time
show_N_images([image_1C_to_3C(swt_mat1),
image_1C_to_3C(swt_mat2)],
individual_titles=[f'SWT Max Stroke Width = 20 - {we_time}',
f'SWT Max Stroke Width = 70 - {woe_time}'],
plot_title='Comparing with and without edges SWT\n',
sup_title=swtImgObj0.image_name)

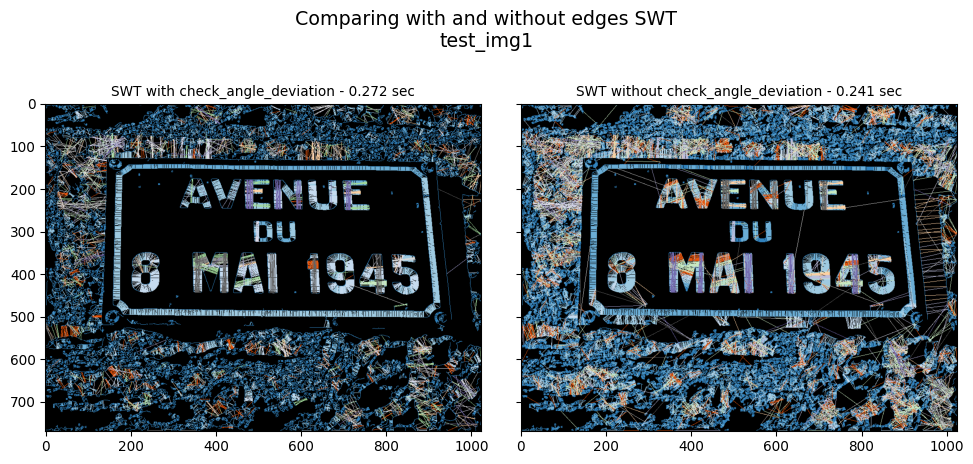

SWTImage.transform.check_angle_deviation
Whether to check for angle deviation [default = True]
Let’s take an edge point E1, from where we start to form a ray in the direction of the gradient vector, and after few steps that ray lands on another edge point E2. Now that we have found an edge point E2 after having started from E1, how can we be sure that this edge point E2 is of the same letter i.e how can we be sure that the ray is an eligible stroke?
For this, the deviation between the gradient vectors of edge point E1 and E2 are measured, this parameter check_angle_deviation governs whether to check that deviation. If set to False, the first edge point that ray ends up meeting will stop the ray generation process and that ray will become an eligible stroke.
If se to True it will be ensured, before locking in the stroke, that the gradient vector of E2 is nearly 180 degrees. The nearly part in last statement is quantified by the parameter maximum_angle_deviation
swt_mat1 = swtImgObj0.transformImage(text_mode='db_lf', check_angle_deviation=True, display=False)
ad_time = swtImgObj0.transform_time
swt_mat2 = swtImgObj0.transformImage(text_mode='db_lf', check_angle_deviation=False, display=False)
wad_time = swtImgObj0.transform_time
show_N_images([image_1C_to_3C(swt_mat1),
image_1C_to_3C(swt_mat2)],
individual_titles=[f'SWT with check_angle_deviation - {ad_time}',
f'SWT without check_angle_deviation - {wad_time}'],
plot_title='Comparing with and without edges SWT\n',
sup_title=swtImgObj0.image_name)
SWTImage.transform.maximum_angle_deviation
Acceptable angle deviation in the incoming edge point’s gradient vector[default = np.pi/6]
As explained in the check_angle_deviation, this parameter quantifies whats the acceptable deviation between the gradient angles of the E1 and any other incoming E2.
swt_mat1 = swtImgObj0.transformImage(text_mode='db_lf', maximum_angle_deviation=np.pi/8, display=False)
ad8_time = swtImgObj0.transform_time
swt_mat2 = swtImgObj0.transformImage(text_mode='db_lf', maximum_angle_deviation=np.pi/2, display=False)
ad2_time = swtImgObj0.transform_time
show_N_images([image_1C_to_3C(swt_mat1),
image_1C_to_3C(swt_mat2)],
individual_titles=[f'SWT with maximum_angle_deviation=np.pi/8 - {ad8_time}',
f'SWT without maximum_angle_deviation=np.pi/2 - {ad2_time}'],
plot_title='Comparing with and without edges SWT\n',
sup_title=swtImgObj0.image_name)
SWTImage.transform.display
This parameter just governs whether to display that particular stage’s process. Its interpretation is same for all the functions in SWTImage class.
swt_mat1 = swtImgObj0.transformImage(text_mode='db_lf', maximum_angle_deviation=np.pi/8, display=True)
Letter Localizations, Annotations & Query

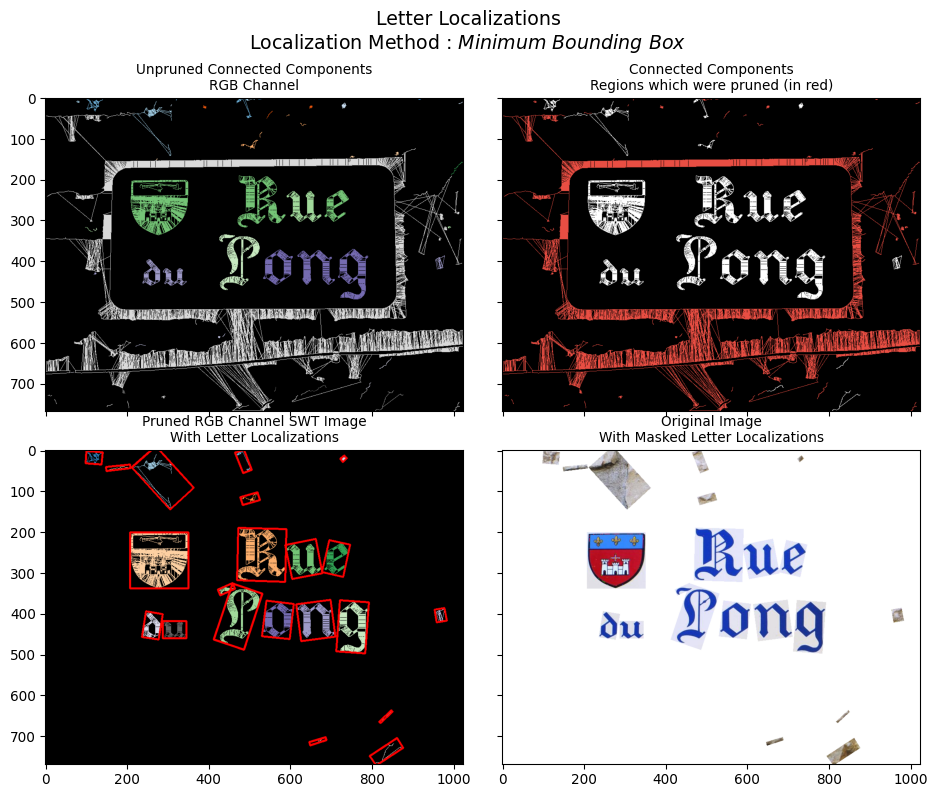

SWTImage.localizeLetters function is responsible for localizing letters based on the following parameters. Apart from localization this function also calculates and generates boundaries across each individual letters.
minimum_pixels_per_cc
maximum_pixels_per_cc
acceptable_aspect_ratio
localize_by
padding_pct
Connected Components are found using OpenCV’s connectedComponentsWithStats function, in which each pixel is grouped to a blob of pixels who share their borders. Once these components have been found, pruning is done based on three parameters as stated above and explained below.
After the pruning it is assumed, whatever components which remain are worthy of being called as Letter’s.
These are the Image Codes which become available after running of SWTImage.localizeLetters function :
Image-Code |
Description |
|---|---|
IMAGE_CONNECTED_COMPONENTS_1C |
Connected Components Single Channel |
IMAGE_CONNECTED_COMPONENTS_3C |
Connected Components RGB Channel |
IMAGE_CONNECTED_COMPONENTS_3C_WITH_PRUNED_ELEMENTS |
Connected Components Regions which were pruned (in red) |
IMAGE_CONNECTED_COMPONENTS_PRUNED_1C |
Pruned Connected Components Single Channel |
IMAGE_CONNECTED_COMPONENTS_PRUNED_3C |
Pruned Connected Components RGB Channel |
IMAGE_PRUNED_3C_LETTER_LOCALIZATIONS |
Pruned RGB Channel SWT Image With Letter Localizations |
IMAGE_ORIGINAL_LETTER_LOCALIZATIONS |
Original Image With Letter Localizations |
IMAGE_ORIGINAL_MASKED_LETTER_LOCALIZATIONS |
Original Image With Masked Letter Localizations |
Our Muse (🐁) for this Section
swtImgObj1 = swtl.swtimages[1]
swtImgObj1.showImage()
Transformation

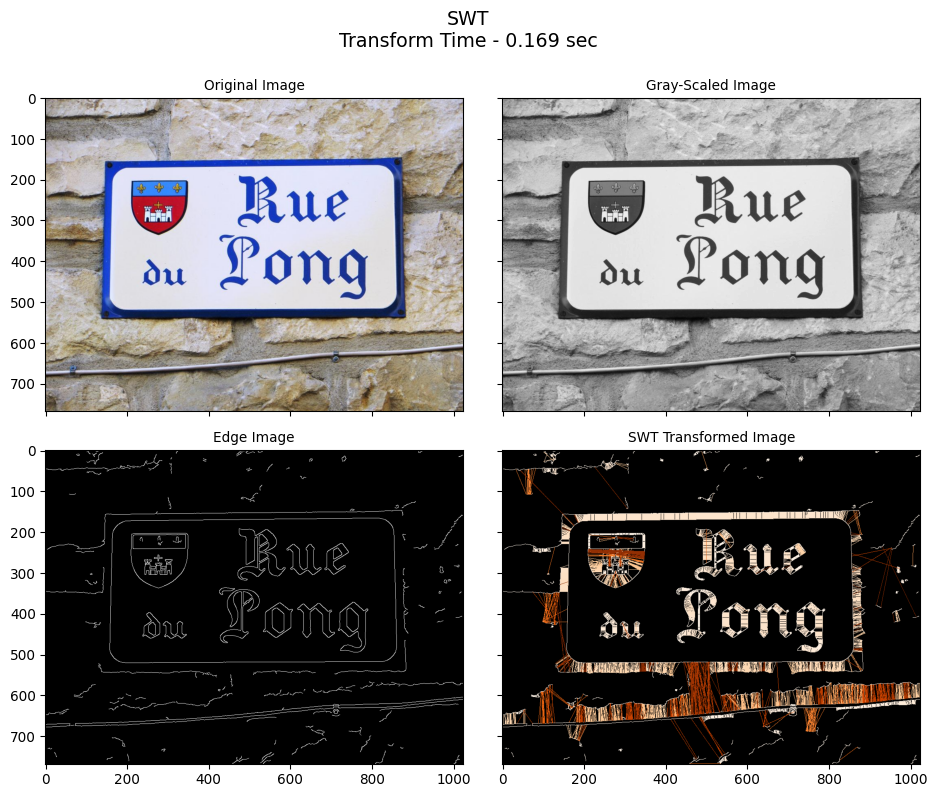

swt_mat = swtImgObj1.transformImage(text_mode='lb_df',
maximum_angle_deviation=np.pi/4,
include_edges_in_swt=True)

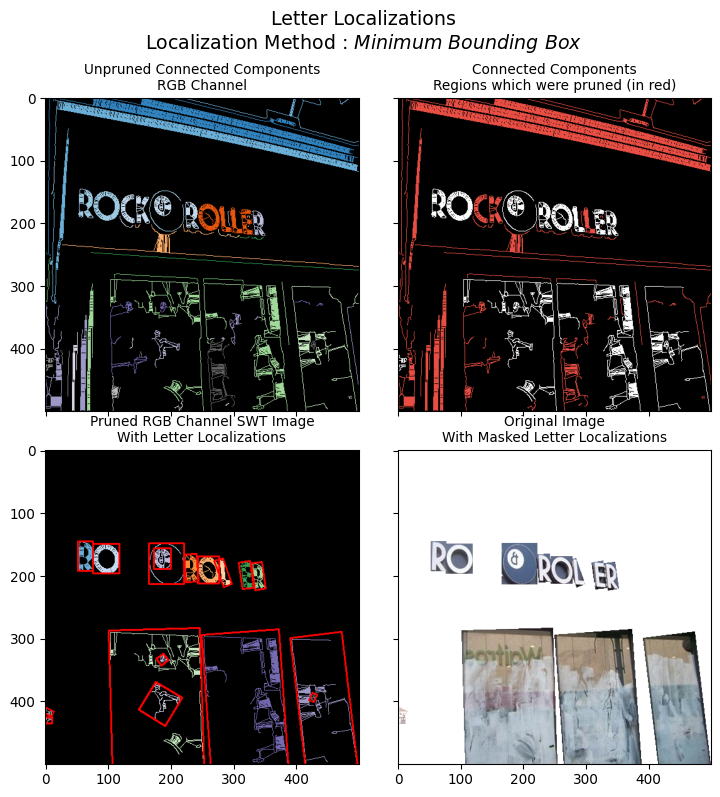

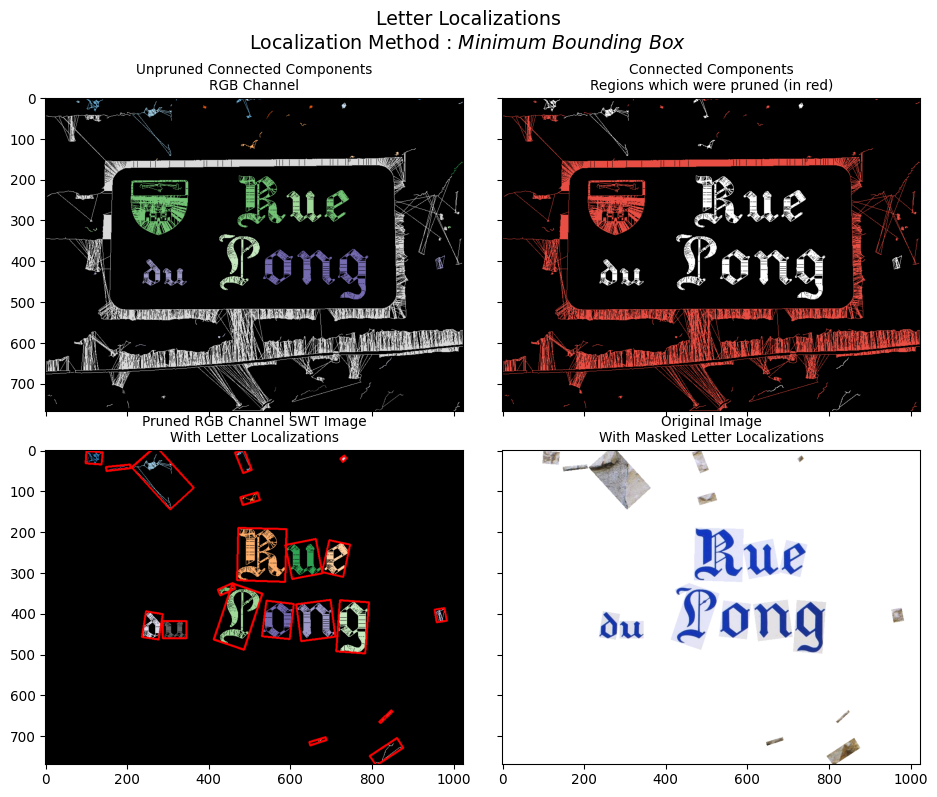

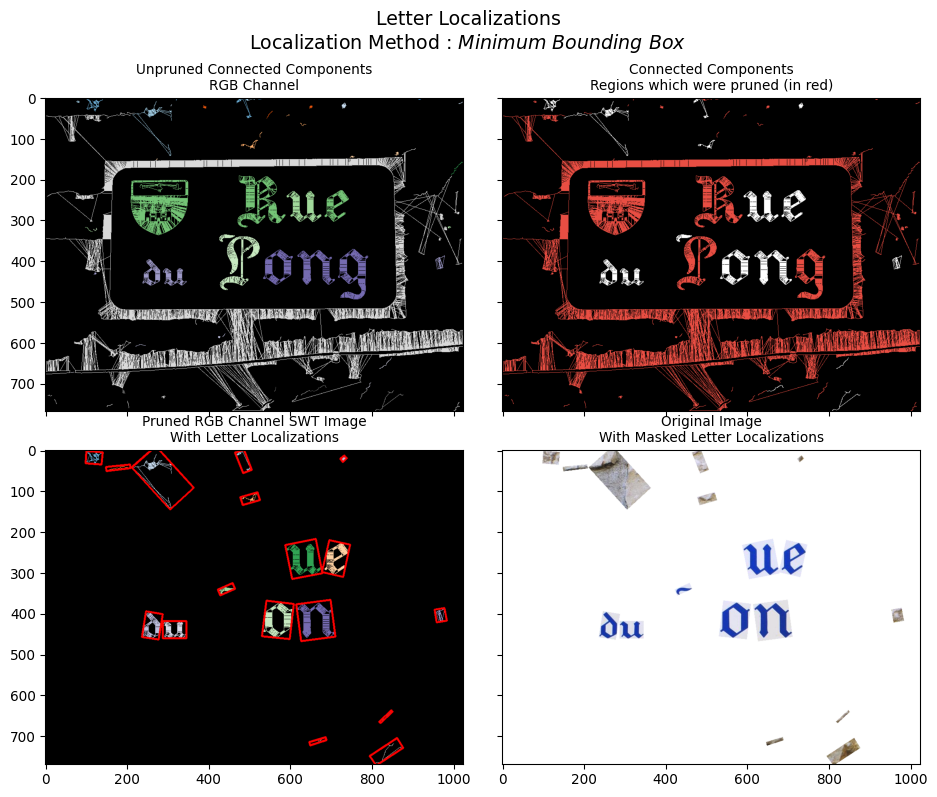

SWTImage.localizeLetters.minimum_pixels_per_cc
All those connected components whose area(number of pixels in that connected component) is less than minimum_pixels_per_cc will be pruned
localized_letters = swtImgObj1.localizeLetters()
localized_letters = swtImgObj1.localizeLetters(minimum_pixels_per_cc=9000)

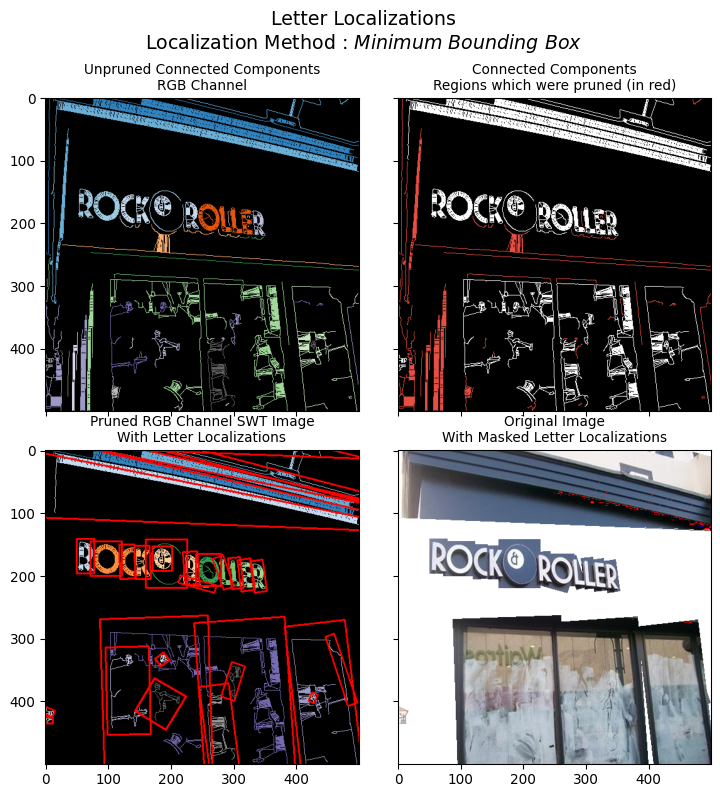

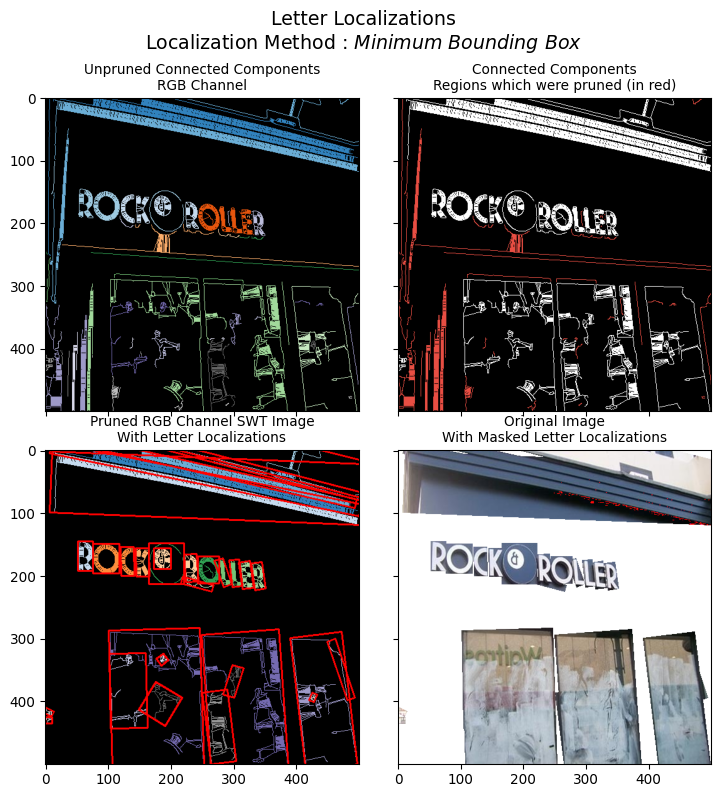

SWTImage.localizeLetters.maximum_pixels_per_cc
All those connected components whose area(number of pixels in that connected component) is more than maximum_pixels_per_cc will be pruned
localized_letters = swtImgObj1.localizeLetters(maximum_pixels_per_cc=3_000)
localized_letters = swtImgObj1.localizeLetters(maximum_pixels_per_cc=5_000)
SWTImage.localizeLetters.acceptable_aspect_ratio
All those connected components whose aspect ratio (width/height) is less than acceptable_aspect_ratio will be pruned

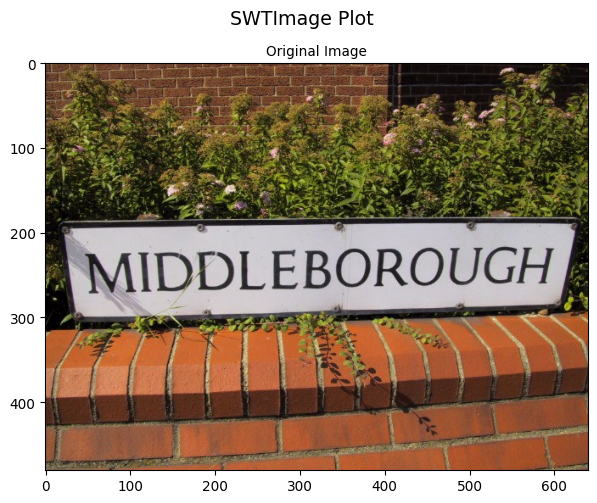

swtImgObj2 = swtl.swtimages[2]
swt_mat = swtImgObj2.transformImage(text_mode='db_lf',
maximum_stroke_width=30,
maximum_angle_deviation=np.pi/8)

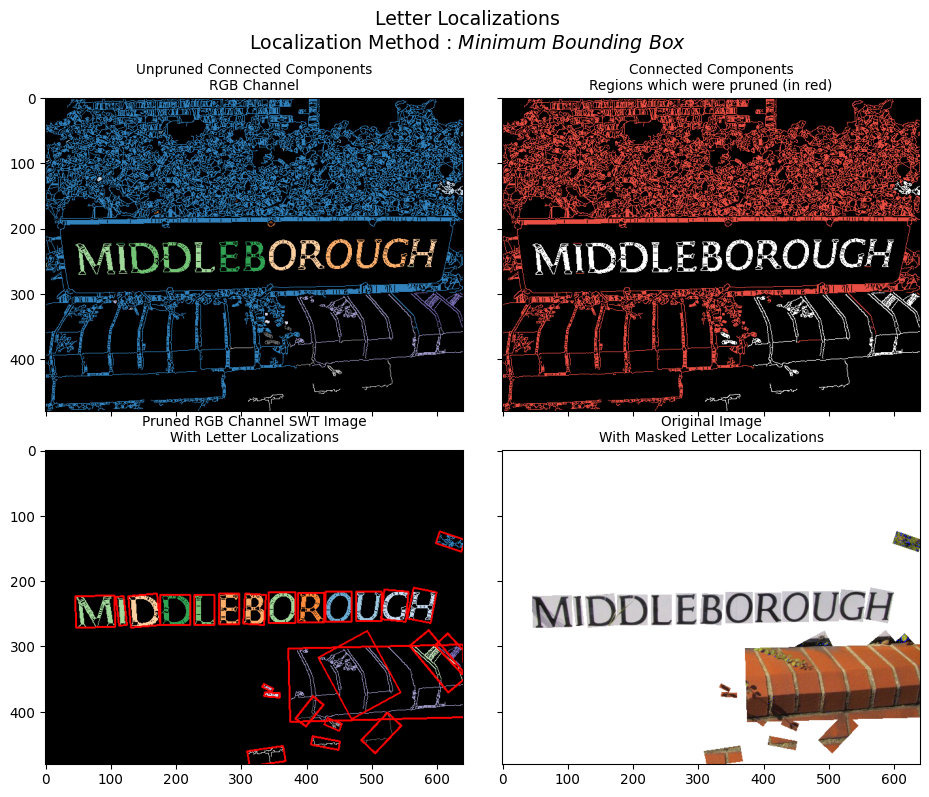

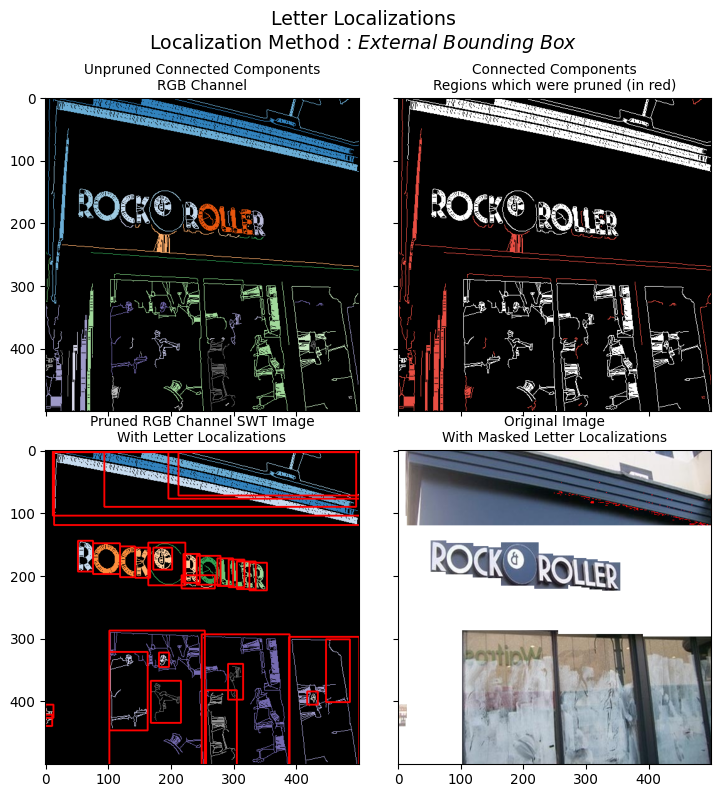

localized_letters = swtImgObj2.localizeLetters(acceptable_aspect_ratio=0.5)
localized_letters = swtImgObj2.localizeLetters(acceptable_aspect_ratio=0.005)
SWTImage.localizeLetters.localize_by
There are three possible parameters which can be given to this function
min_bbox : Minimum Bounding Box Boundary calculation & annotation
ext_bbox : Extreme Bounding Box Boundary calculation & annotation
outline : Outline (Contour) Boundary calculation & annotation
localized_letters = swtImgObj2.localizeLetters(localize_by='min_bbox')

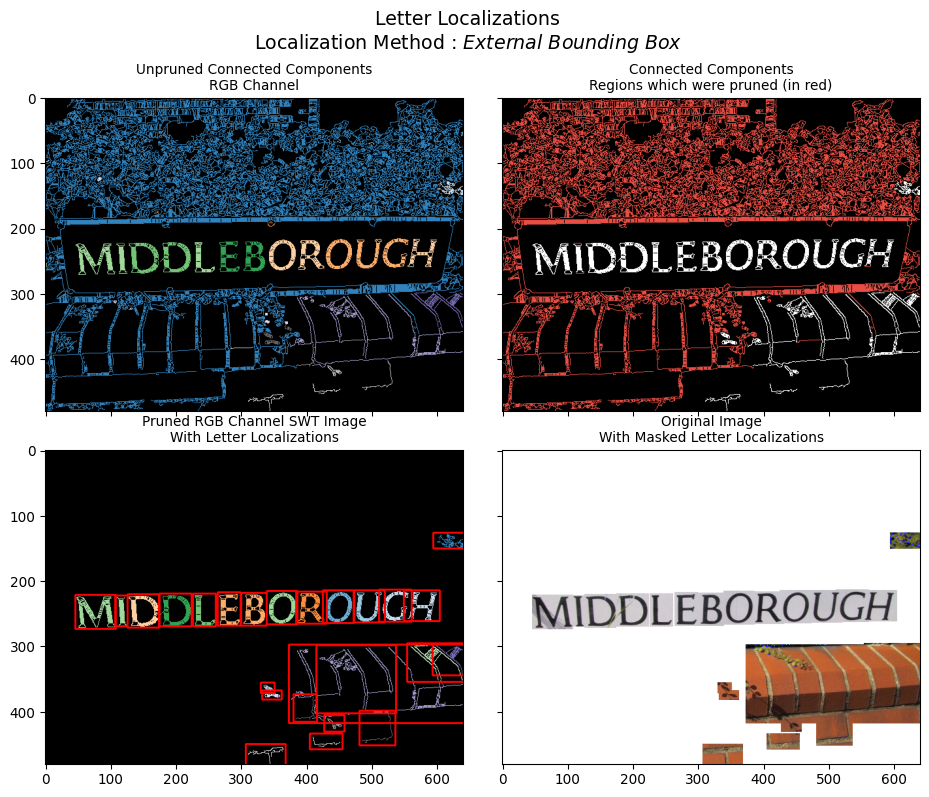

localized_letters = swtImgObj2.localizeLetters(localize_by='ext_bbox')
localized_letters = swtImgObj2.localizeLetters(localize_by='outline')
SWTImage.localizeLetters.padding_pct
While annotating, sometimes the annotation are quite tightly packed to the component itself, padding_pct will inflate the boundary which are calculated. This parameter is only applicable for min_bbox and ext_bbox localizations
localized_letters = swtImgObj2.localizeLetters()
localized_letters = swtImgObj2.localizeLetters(padding_pct=0.1)
Word Localization, Annotations & Query
After having the letters localizer, there exists a core class Fusion whose job is to group individual components into Words, comparing aspects like :
Proximity of letters to each other
Relative minimum bounding box rotation angle from each other
Deviation in color between from one component to the other
Ratio of stroke widths from one to the other
Ratio of minimum bounding box height of one to the other
The above comparisions are taken care of by the following parameters :
localize_by
[lookup_radius_multiplier]
[acceptable_stroke_width_ratio]
[acceptable_color_deviation]
[acceptable_height_ratio]
[acceptable_angle_deviation]
[polygon_dilate_iterations]
[polygon_dilate_kernel]
Image-Code |
Description |
|---|---|
IMAGE_PRUNED_3C_WORD_LOCALIZATIONS |
Pruned RGB Channel SWT Image With Words Localizations |
IMAGE_ORIGINAL_WORD_LOCALIZATIONS |
Original Image With Words Localizations |
IMAGE_ORIGINAL_MASKED_WORD_LOCALIZATIONS |
Original Image With Masked Words Localizations |
Our Muse (🐁) for this Section
swtImgObj3 = swtl.swtimages[3]
swtImgObj3.showImage()
Applying Transformations
swt_mat = swtImgObj3.transformImage(auto_canny_sigma=1.0,
minimum_stroke_width=3,
maximum_stroke_width=20,
maximum_angle_deviation=np.pi/6)
Localizing Letters
# Localising Letters
localized_letters = swtImgObj3.localizeLetters(localize_by='ext_bbox')
SWTImageProcess Error will be raised if .localizeLetters(localize_by='min_bbox') hasnt been run already, as the properties which are calculated while localzing letters by min_bbox such as the min_bbox circum radius are required to fuse letters into words.
# Localising Letters
localized_letters = swtImgObj3.localizeWords()
---------------------------------------------------------------------------
SWTImageProcessError Traceback (most recent call last)
Input In [48], in <module>
1 # Localising Letters
----> 2 localized_letters = swtImgObj3.localizeWords()
File D:\Personal Stuff\swtloc-project\venvs\py39VenvDev\lib\site-packages\swtloc\abstractions.py:1158, in SWTImage.localizeWords(self, localize_by, lookup_radius_multiplier, acceptable_stroke_width_ratio, acceptable_color_deviation, acceptable_height_ratio, acceptable_angle_deviation, polygon_dilate_iterations, polygon_dilate_kernel, display)
1154 # TODO : Add the functionality to detect whether the changes were made to the
1155 # TODO : localizations parameters or just annotation parameter and accordingly make the resets.
1156 # Check if transform stage has been run first or not
1157 if not self.letter_min_done:
-> 1158 raise SWTImageProcessError(
1159 "`SWTImage.localizeLetters` with localize_by='min_bbox' must be called before this function")
1160 # Update configs & Initialise
1161 self.cfg[CONFIG__SWTIMAGE__LOCALIZEWORDS_LOCALIZE_BY] = localize_by
SWTImageProcessError: `SWTImage.localizeLetters` with localize_by='min_bbox' must be called before this function
# Solution : Run .localizeLetters default localize_by = 'min_bbox' (default)
# before running .localizeWords
localized_letters = swtImgObj3.localizeLetters()
SWTImage.localizeWords.localize_by
This parameter switches between various annotations which can be added to the words [default = ‘bubble’]
Possible values are :

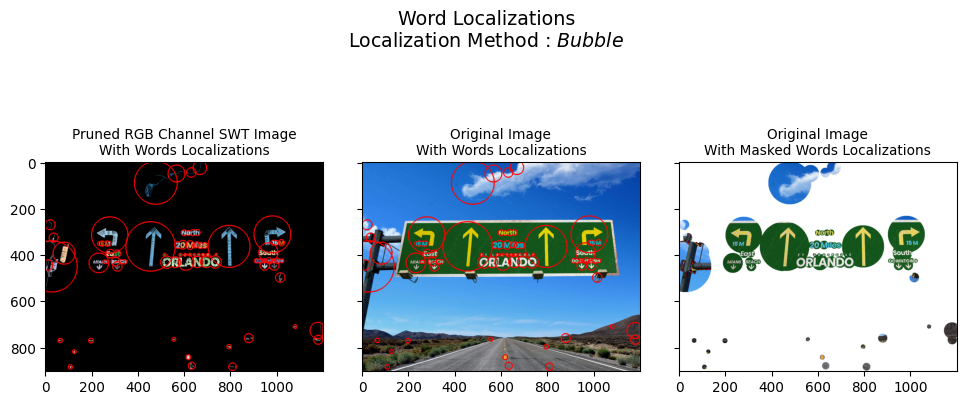

‘bubble’ : Bubble Boundary

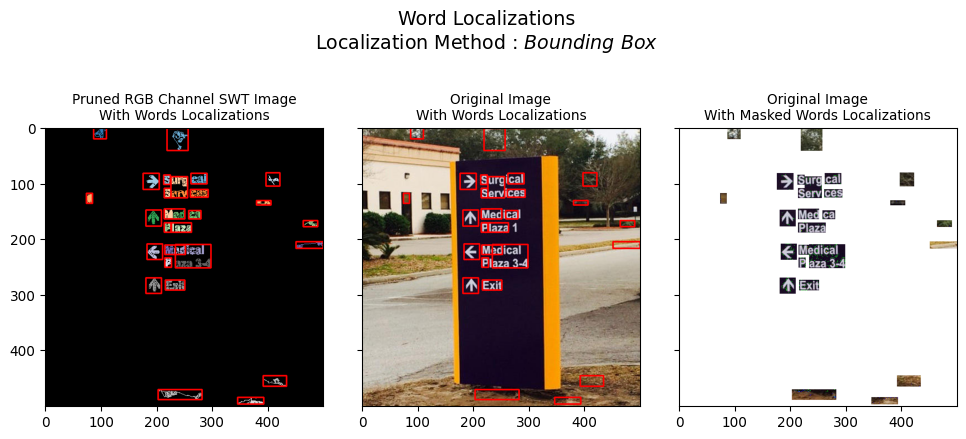

‘bbox’ : Bounding Box
‘polygon’ : Contour Boundary
localized_words = swtImgObj3.localizeWords(localize_by='bubble')

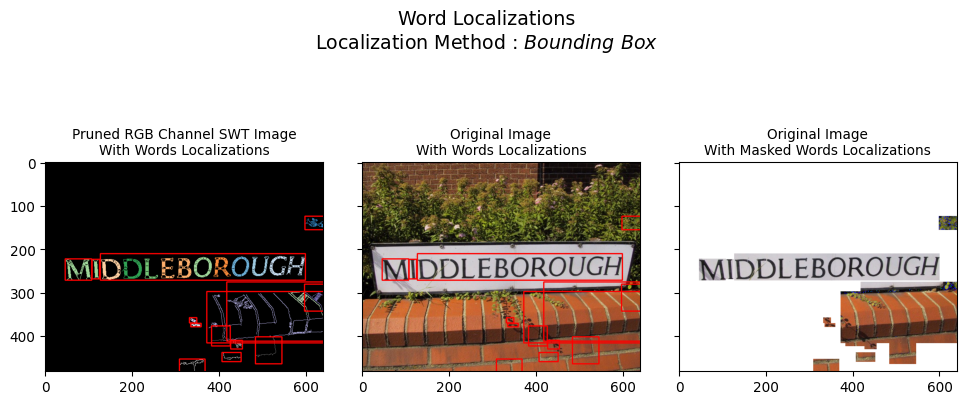

localized_words = swtImgObj3.localizeWords(localize_by='bbox')
localized_words = swtImgObj3.localizeWords(localize_by='polygon')
Display Intermediary Images
From v2.0.0 onwards, a provision was added to save the intermediary stage images by access the SWTImage.showImage function.
Available Image Codes
image_code_df = pd.DataFrame(columns=['Description'])
for each_code_name, each_code in CODE_NAME_VAR_MAPPINGS.items():
image_code_df.loc[each_code_name] = get_code_descriptions(each_code).replace('\n', ' ')
image_code_df.style.set_properties(**{'width': '600px', 'text-align': 'center'})
| Description | |
|---|---|
| IMAGE_ORIGINAL | Original Image |
| IMAGE_GRAYSCALE | Gray-Scaled Image |
| IMAGE_EDGED | Edge Image |
| IMAGE_SWT_TRANSFORMED | SWT Transformed Image |
| IMAGE_CONNECTED_COMPONENTS_1C | Unpruned Connected Components Single Channel |
| IMAGE_CONNECTED_COMPONENTS_3C | Unpruned Connected Components RGB Channel |
| IMAGE_CONNECTED_COMPONENTS_3C_WITH_PRUNED_ELEMENTS | Connected Components Regions which were pruned (in red) |
| IMAGE_CONNECTED_COMPONENTS_PRUNED_1C | Pruned Connected Components Single Channel |
| IMAGE_CONNECTED_COMPONENTS_PRUNED_3C | Pruned Connected Components RGB Channel |
| IMAGE_PRUNED_3C_LETTER_LOCALIZATIONS | Pruned RGB Channel SWT Image With Letter Localizations |
| IMAGE_ORIGINAL_LETTER_LOCALIZATIONS | Original Image With Letter Localizations |
| IMAGE_ORIGINAL_MASKED_LETTER_LOCALIZATIONS | Original Image With Masked Letter Localizations |
| IMAGE_PRUNED_3C_WORD_LOCALIZATIONS | Pruned RGB Channel SWT Image With Words Localizations |
| IMAGE_ORIGINAL_WORD_LOCALIZATIONS | Original Image With Words Localizations |
| IMAGE_ORIGINAL_MASKED_WORD_LOCALIZATIONS | Original Image With Masked Words Localizations |
| IMAGE_INDIVIDUAL_LETTER_LOCALIZATION | Individual Letter With Localizations Over Edged + SWT |
| IMAGE_ORIGINAL_INDIVIDUAL_LETTER_LOCALIZATION | Individual Letter With Localizations Over Original |
| IMAGE_INDIVIDUAL_WORD_LOCALIZATION | Individual Word With Localizations Over Edged + SWT |
| IMAGE_ORIGINAL_INDIVIDUAL_WORD_LOCALIZATION | Individual Word With Localizations Over Original |
Our Muse (🐁) for this Section

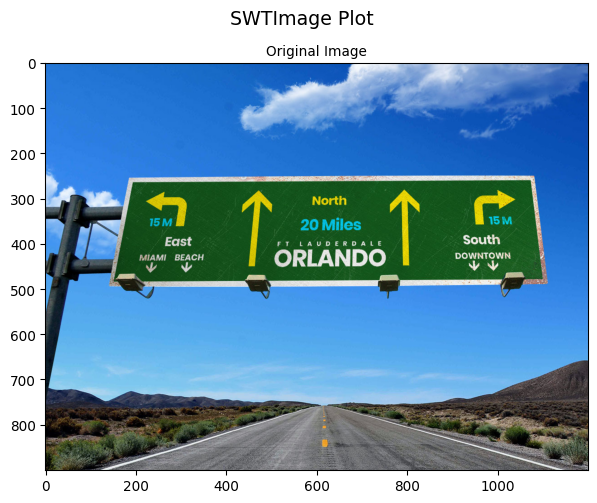

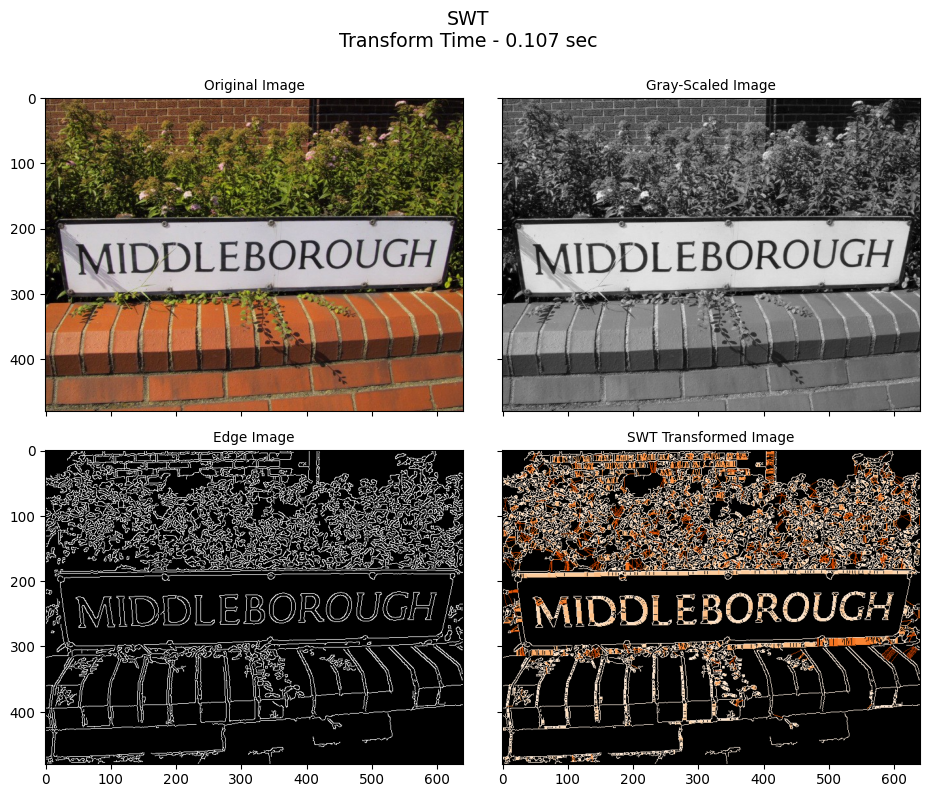

swtImgObj4 = swtl.swtimages[4]
swtImgObj4.showImage()
swt_mat = swtImgObj4.transformImage(text_mode='db_lf', maximum_angle_deviation=np.pi/2,
edge_function='ac',
minimum_stroke_width=3, maximum_stroke_width=50, display=False)
localized_letters = swtImgObj4.localizeLetters()
localized_words = swtImgObj4.localizeWords()
Display Multiple Images

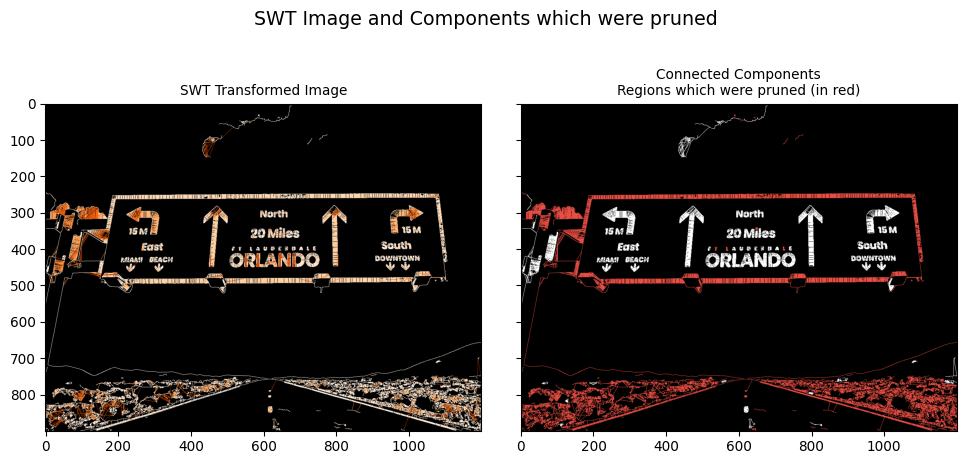

swtImgObj4.showImage(image_codes=[IMAGE_SWT_TRANSFORMED,
IMAGE_CONNECTED_COMPONENTS_3C_WITH_PRUNED_ELEMENTS],
plot_title='SWT Image and Components which were pruned')
Save Prepared Images
swtImgObj4.showImage(image_codes=[IMAGE_SWT_TRANSFORMED,
IMAGE_CONNECTED_COMPONENTS_3C_WITH_PRUNED_ELEMENTS],
plot_title='SWT Image and Components which were pruned',
save_fig=True, save_dir=res_path[4])
'images/test_img5/usage_results/test_img5_04_07.jpg'

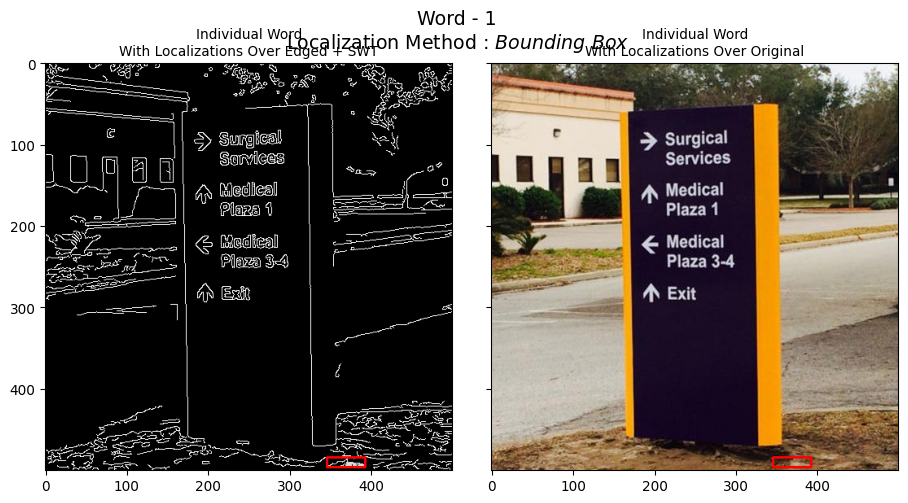

Save Crops of Letter’s and Word’s
From v2.0.0 onwards, provision to save a crop of the Letter or a Word has been added via the function SWTImage.saveCrop. The crops can be made on any one of the available image codes for a particular letter or word key
Our Muse (🐁) for this Section

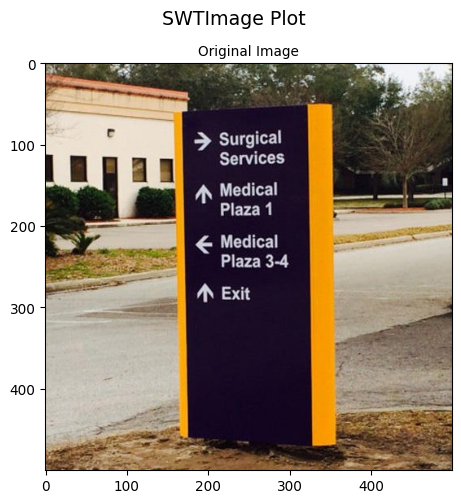

swtImgObj5 = swtl.swtimages[5]
swtImgObj5.showImage()
Performing Transformations and Localizations
swt_mat = swtImgObj5.transformImage(text_mode='db_lf', maximum_angle_deviation=np.pi/2,
edge_function='ac',
minimum_stroke_width=3, maximum_stroke_width=50, display=False)

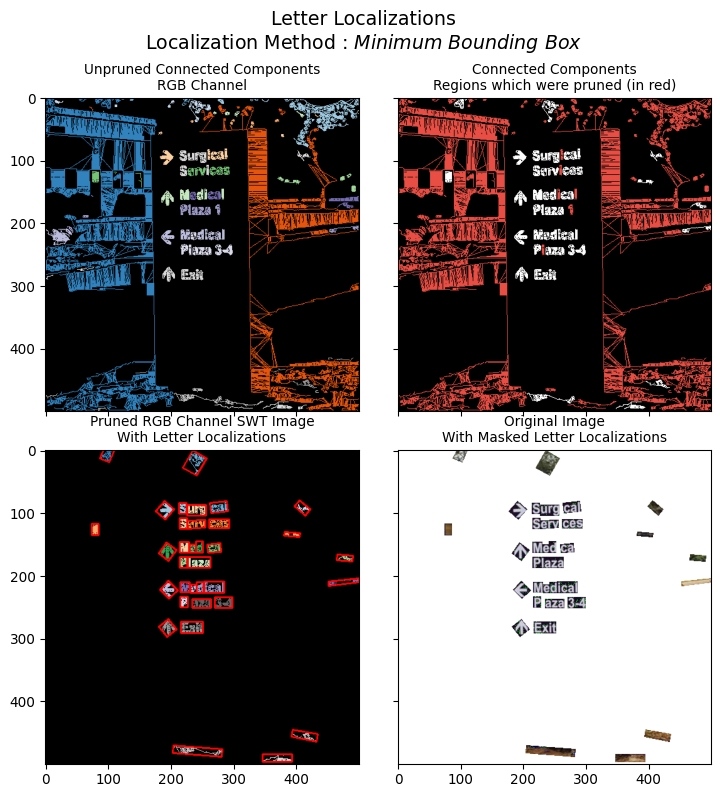

localized_letters = swtImgObj5.localizeLetters(minimum_pixels_per_cc=80,
maximum_pixels_per_cc=400)
localized_words = swtImgObj5.localizeWords(localize_by='bbox')
While sifting through the multitudes of letters and words localized, it becomes cumbersome to query a function for every label and then see which letter/word is of interest to use the crop of. For this purpose, two functions letterIterator and wordIterator are provided in the SWTImage object which return a generator for a particular localize_type
# Letter Iterator
letter_iterator = swtImgObj5.letterIterator()
word_iterator = swtImgObj5.wordIterator(localize_by='bbox')
letter, orig_letter, orig_masked_letter = next(letter_iterator)
swtImgObj5.saveCrop(save_path=res_path[5], crop_of='letters',
crop_key=int(letter.label), crop_on=IMAGE_SWT_TRANSFORMED, crop_type='min_bbox')
swtImgObj5.saveCrop(save_path=res_path[5], crop_of='letters',
crop_key=int(letter.label), crop_on=IMAGE_ORIGINAL, crop_type='min_bbox')
word, orig_word, orig_masked_word = next(word_iterator)
swtImgObj5.saveCrop(save_path=res_path[5], crop_of='words',
crop_key=int(word.label), crop_on=IMAGE_SWT_TRANSFORMED, crop_type='bbox')
swtImgObj5.saveCrop(save_path=res_path[5], crop_of='words',
crop_key=int(word.label), crop_on=IMAGE_ORIGINAL, crop_type='bbox')
