Usage

These code blocks can be found in SWTloc-Usage-[v2.0.0-onwards].ipynb notebook in examples/.

Initialisation of SWTLocalizer

  • Initialising the - This is the entry point, which can accept either single image path (str)/ multiple image paths (List[str])/ single image (np.ndarray)/ multiple images (List[np.ndarray]).

from swtloc import SWTLocalizer
imgpath = 'images/test_img4/test_img4.jpeg'
respath = 'images/test_img4/usage_results/'
swtl = SWTLocalizer(image_paths=imgpath)
swtImgObj = swtl.swtimages[0]
print(swtImgObj, type(swtImgObj))
swtImgObj.showImage()

SWTImage-test_img4 <class ‘swtloc.abstractions.SWTImage’>

Stroke Width Transformation using SWTImage.transformImage

swt_mat = swtImgObj.transformImage(text_mode='lb_df',
                                   auto_canny_sigma=1.0,
                                   maximum_stroke_width=20)

Localizing Letters using SWTImage.localizeLetters

localized_letters = swtImgObj.localizeLetters(minimum_pixels_per_cc=100,
                                              maximum_pixels_per_cc=10_000,
                                              acceptable_aspect_ratio=0.2)
letter_labels = list([int(k) for k in localized_letters.keys()])

Query a Letter using SWTImage.getLetter

letter_label = letter_labels[3]
locletter = swtImgObj.getLetter(key=letter_label)

Localizing Words using SWTImage.localizeWords

localized_words = swtImgObj.localizeWords()
word_labels = list([int(k) for k in localized_words.keys()])

Query a Word using SWTImage.getWord

word_label = word_labels[12]
locword = swtImgObj.getWord(key=word_label)

Accessing intermediary stage images using SWTImage.showImage and saving them

from swtloc.configs import (IMAGE_ORIGINAL,
                            IMAGE_ORIGINAL_MASKED_WORD_LOCALIZATIONS)
swtImgObj.showImage(image_codes=[IMAGE_ORIGINAL,
                                 IMAGE_ORIGINAL_MASKED_WORD_LOCALIZATIONS],
                    plot_title='Original & Bubble Mask')

Saving Crops of the localized letters and words

from swtloc.configs import (IMAGE_ORIGINAL,
                            IMAGE_SWT_TRANSFORMED)
# Letter Crops
swtImgObj.saveCrop(save_path=respath, crop_of='letters', crop_key=4, crop_type='min_bbox', crop_on=IMAGE_ORIGINAL)
swtImgObj.saveCrop(save_path=respath, crop_of='letters', crop_key=4, crop_type='min_bbox', crop_on=IMAGE_SWT_TRANSFORMED)

# Word Crops
swtImgObj.saveCrop(save_path=respath, crop_of='words', crop_key=13, crop_type='bubble', crop_on=IMAGE_ORIGINAL)
swtImgObj.saveCrop(save_path=respath, crop_of='words', crop_key=13, crop_type='bubble', crop_on=IMAGE_SWT_TRANSFORMED)

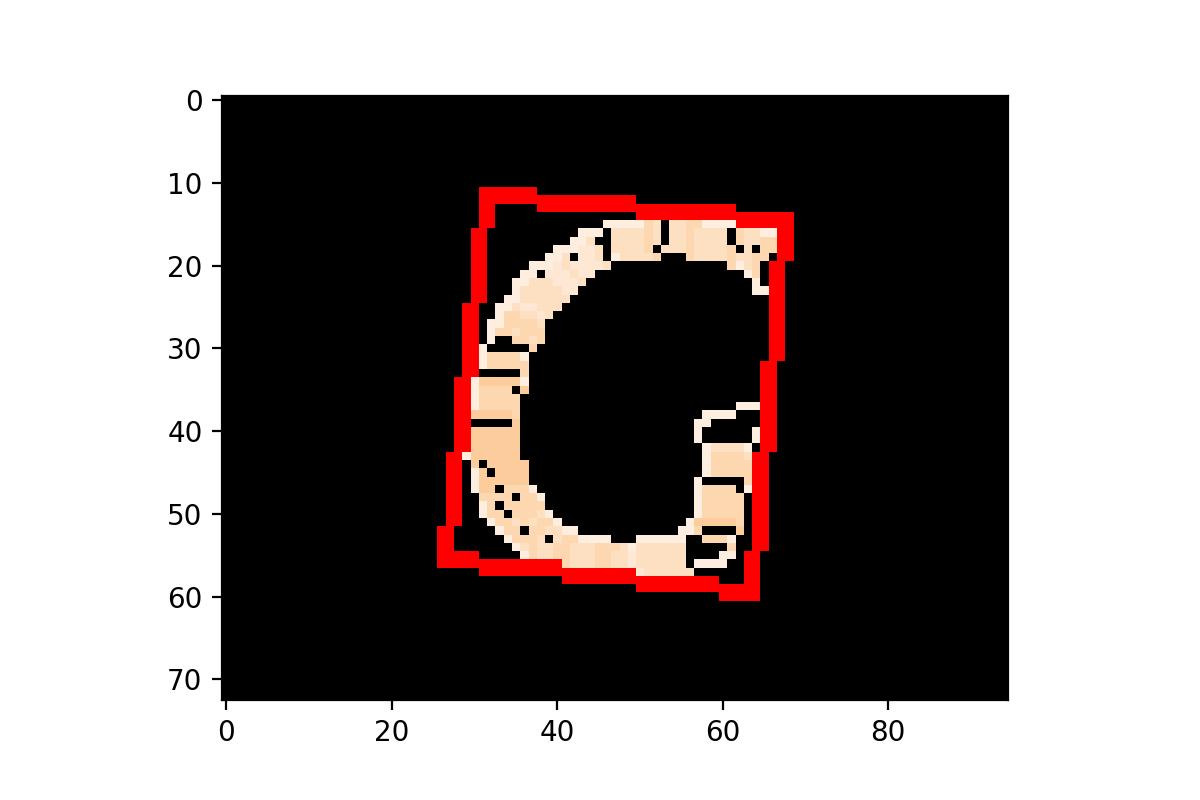

Letter Crops

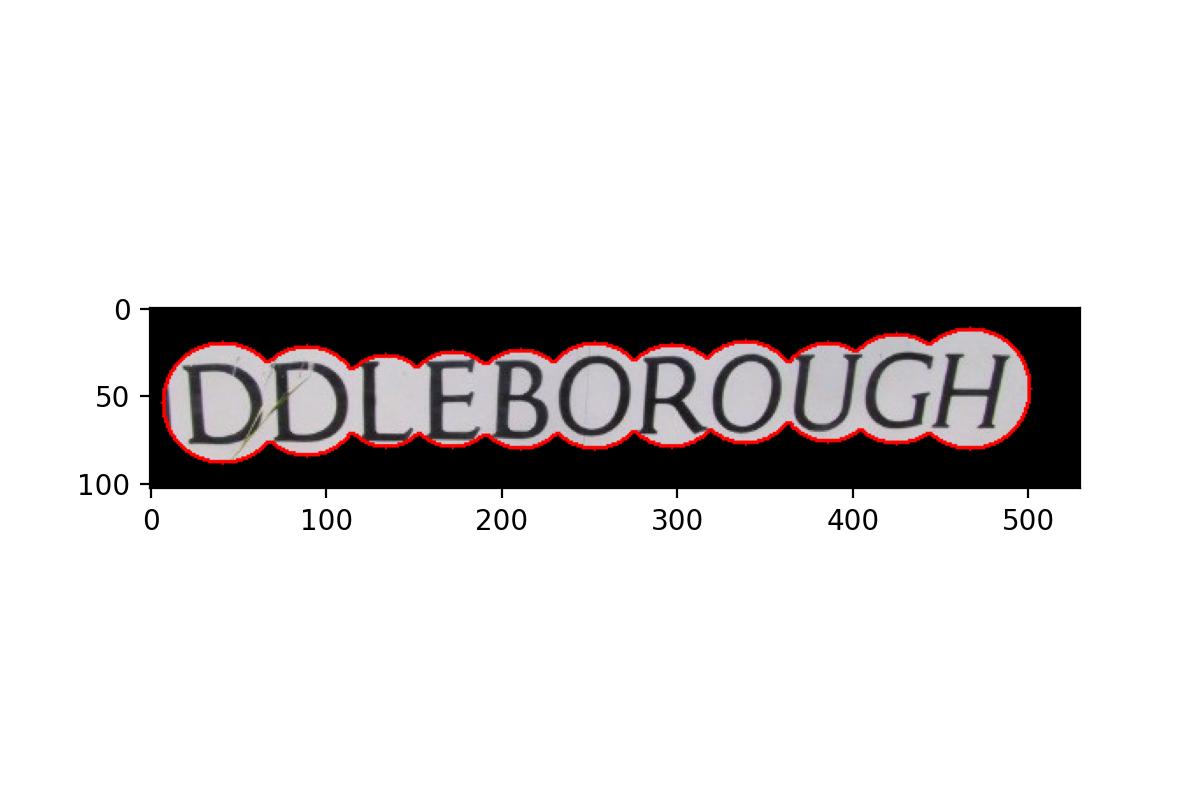

Word Crops
